See Through, Far and True
For Enterprises
Key Features
1535 nm Long-Range LiDAR System with up to 950 m Detection Range
Dual 100 MP 4/3 CMOS RGB Cameras for True-Color Point Clouds
0.25 mrad Beam Divergence for High Energy Density and Fine Detail Capture
Supports Up to 2 Million Points per Second and 16 Returns
Adjustable Pulse Rate and Multiple Scanning Modes
Vertical Accuracy Better Than 3 cm at 120 m Altitude
Ranging Repeatability of 5 mm at 150 m (1σ)
High Ground Point Density for Precise Terrain Reconstruction
High Ground Point Density for Precise Terrain Reconstruction
107° Ultra-Wide Field of View for Efficient Area Coverage
Up to 100 km² of Mapping per Day on DJI Matrice 400 Platform
Heading Accuracy: 0.02° / Pitch Accuracy: 0.01° (Post-Processed)
Ground Sample Distance (GSD): 3 cm at 300 m Flight Altitude
Seamless Integration with DJI Terra, DJI Modify, and FlightHub 2
End-to-End Workflow from Mission Planning to Data Visualization
Compatible with DJI Matrice 400
Overview
The DJI Zenmuse L3 is a next-generation long-range, high-accuracy LiDAR and mapping payload designed for professional geospatial and surveying applications. Combining a 1535 nm laser system, dual 100 MP RGB mapping cameras, and a high-precision IMU, it delivers survey-grade accuracy with unmatched efficiency. Built for seamless integration within the DJI Enterprise ecosystem, the L3 streamlines data capture, processing, and visualization for mission-critical aerial mapping. With extended range, dense point clouds, and true-color reconstruction, it redefines what’s possible in aerial LiDAR mapping.
Applications
Geospatial
Energy
Environmental
Agriculture
Mining
Need help choosing the right product? Dronehub Product Experts are available to help you find the product and service that is right for you.
Warranty Info
This product comes with a manufacturer's limited warranty of 1 year parts and 1 year labor.
Other products
1/1

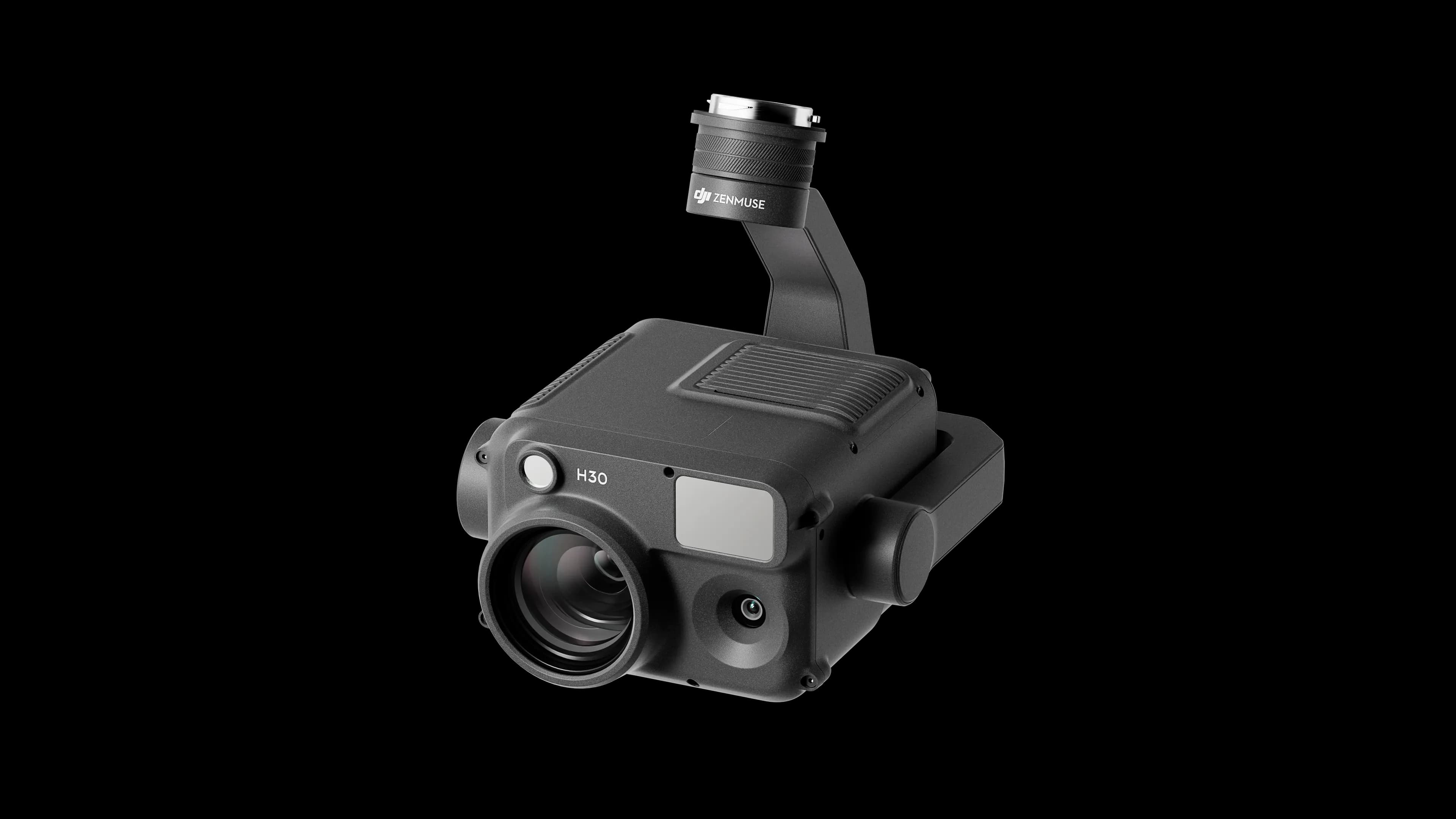

DJI Zenmuse H30
